3RU MPO MTP Patch Panels 108F Fiber Patch Panel SC APC Holds 9 LGX Adapter

Name: 3RU MPO MTP Patch Panels 108F Fiber Patch Panel SC APC Holds 9 LGX Adapter
Brand: Twilight Optic or OEM
Price: 1 USD

3RU MPO MTP Patch Panels 108F Fiber Patch Panel SC APC Holds 9 LGX Adapter Manufactures

Brand Name : Twilight Optic or OEM

Model Number : TW-3U9MDA01

Place of Origin : Made In China

MOQ : 1

Price : Can be disscussed

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000pcs/month

Delivery Time : 25-30 working days

Packaging Details : Standard Carton

Material : Cold-rolled steel sheet

Size : 433*350*3U

Max Capacity : 108 Core SC

Adapter Panel : 9 pcs

Main body's depth : 1.5mm

Color : Black

Warranty : Many Years

Type : LC, ST, FC Adapter Panel MTP, MPO to LC Cassette Module

Contact Now

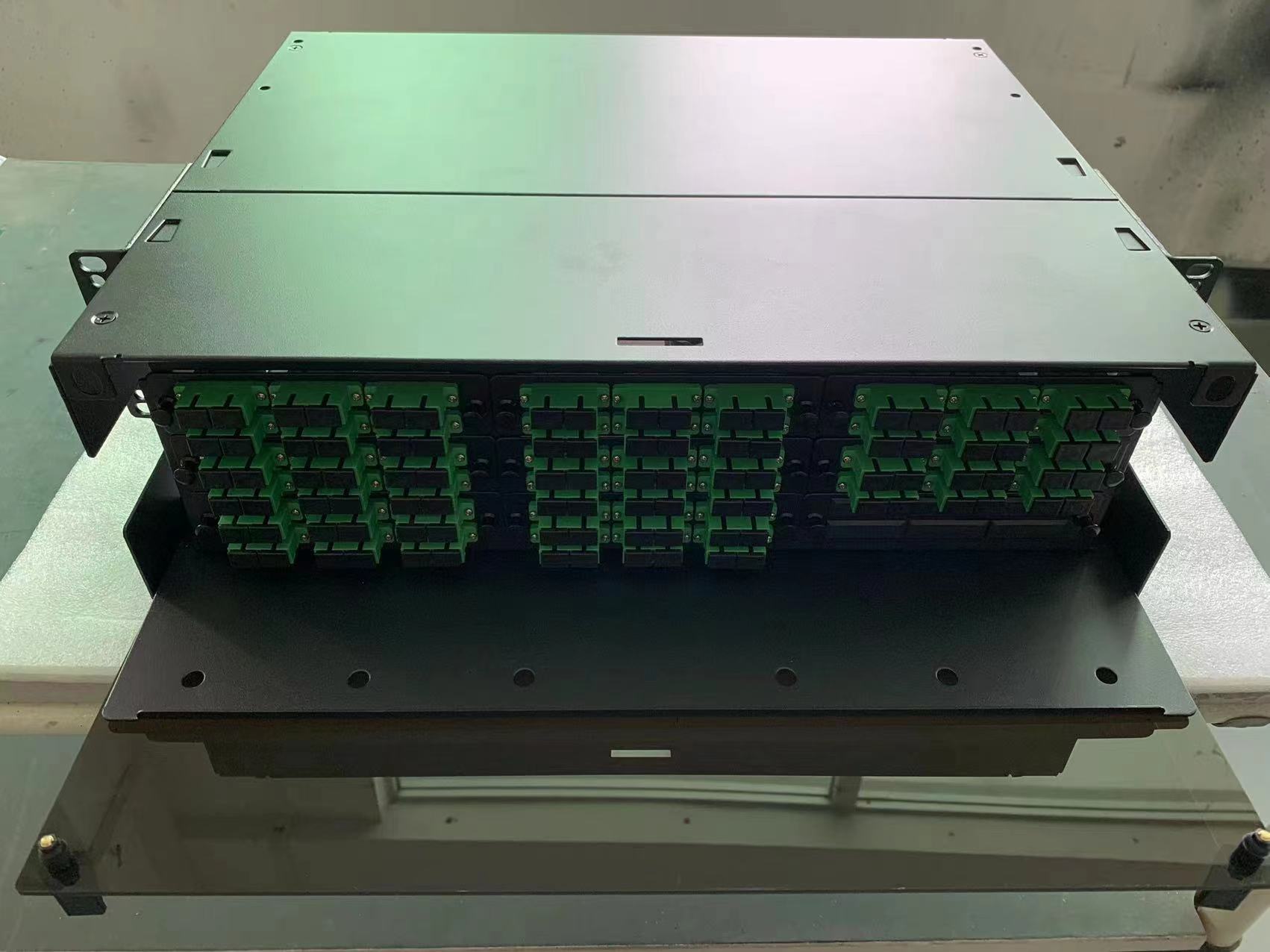

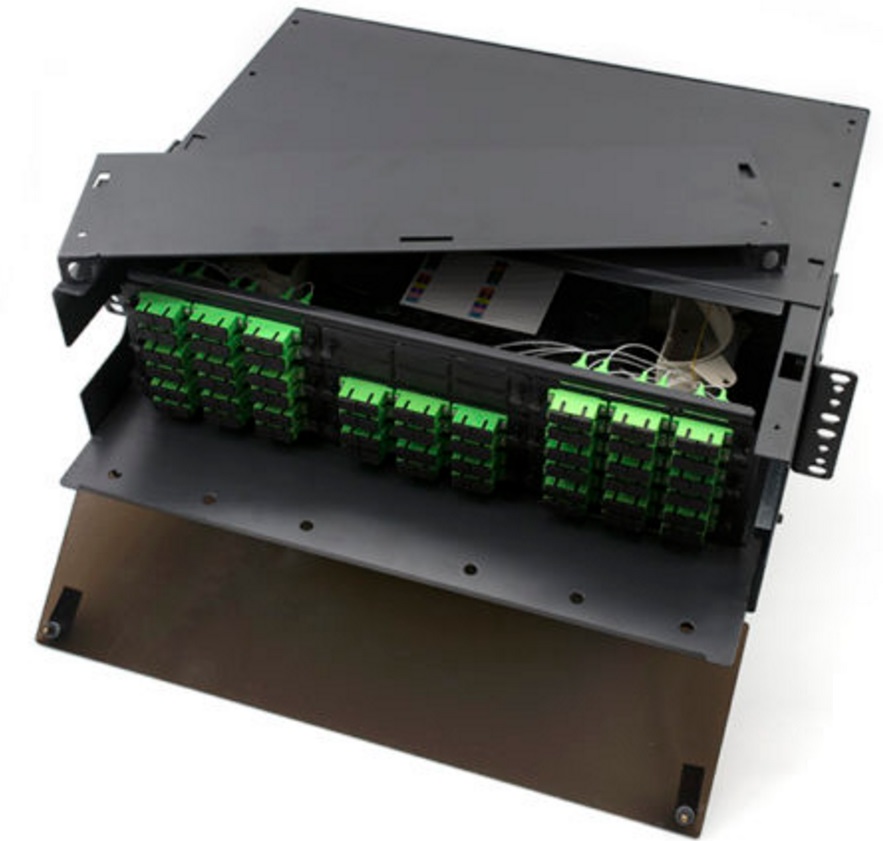

3RU Fiber Patch Panel SC APC 108F Holds 9 LGX Adapter Plates Or 9 MTP/MPO Cassettes

Description:

Designed for high density, our 3U High Density Rack Mount Fiber Patch Panel Enclosure is constructed from 16 gauge steel for performance and durability.

Specification:

Connector Type	LC,FC,ST,SC or MPO to LC Cassette module
Size	3U 19inch
Weight9	12 kg/pc
Simplex or Duplex	LC Quad or SC Duplex
Color	Black
Material	Cold Rolled Steel Sheet
Application	For Cable Distribution
Warranty	Many years

Features:

1. 9 Slots LGX in 3U space
2. Modular with MTP Cassette or Adapter plates

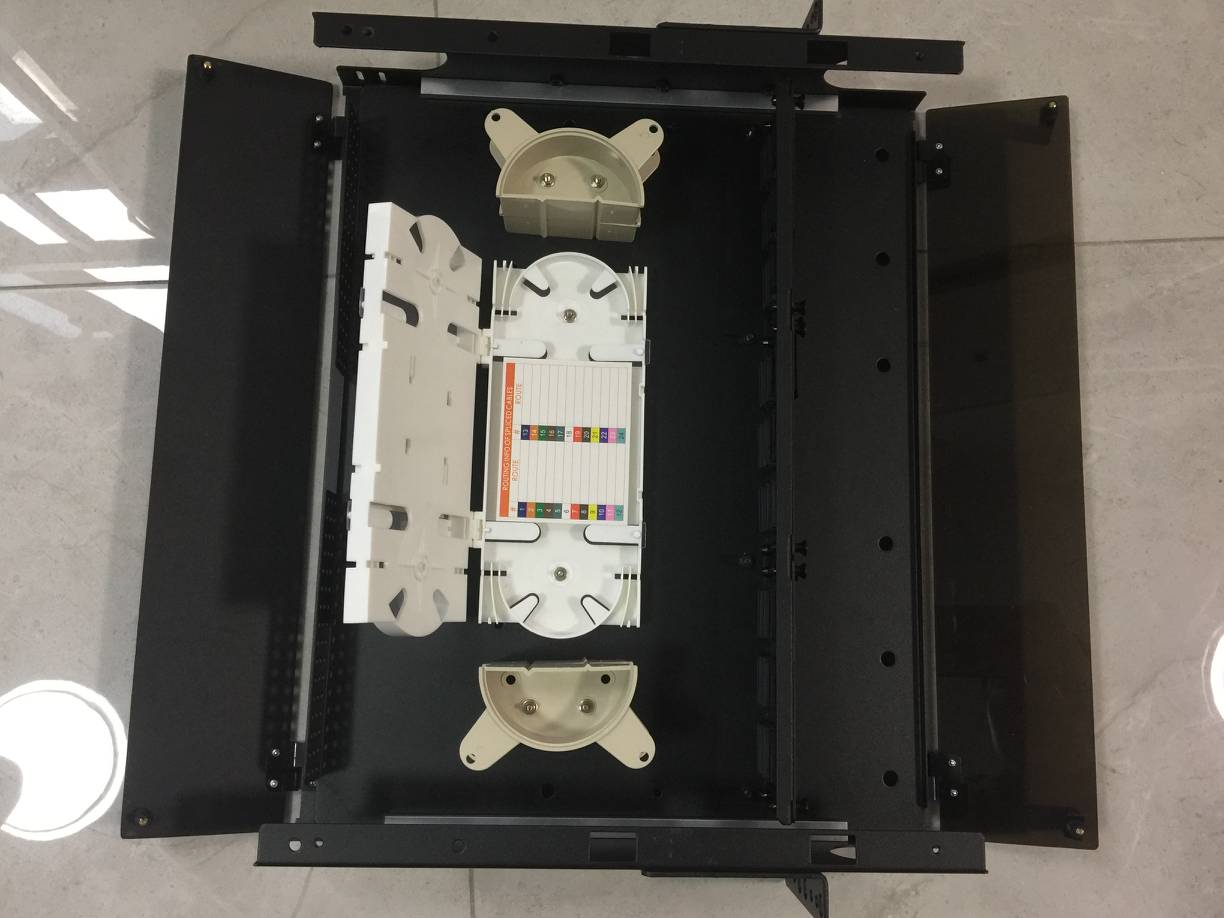

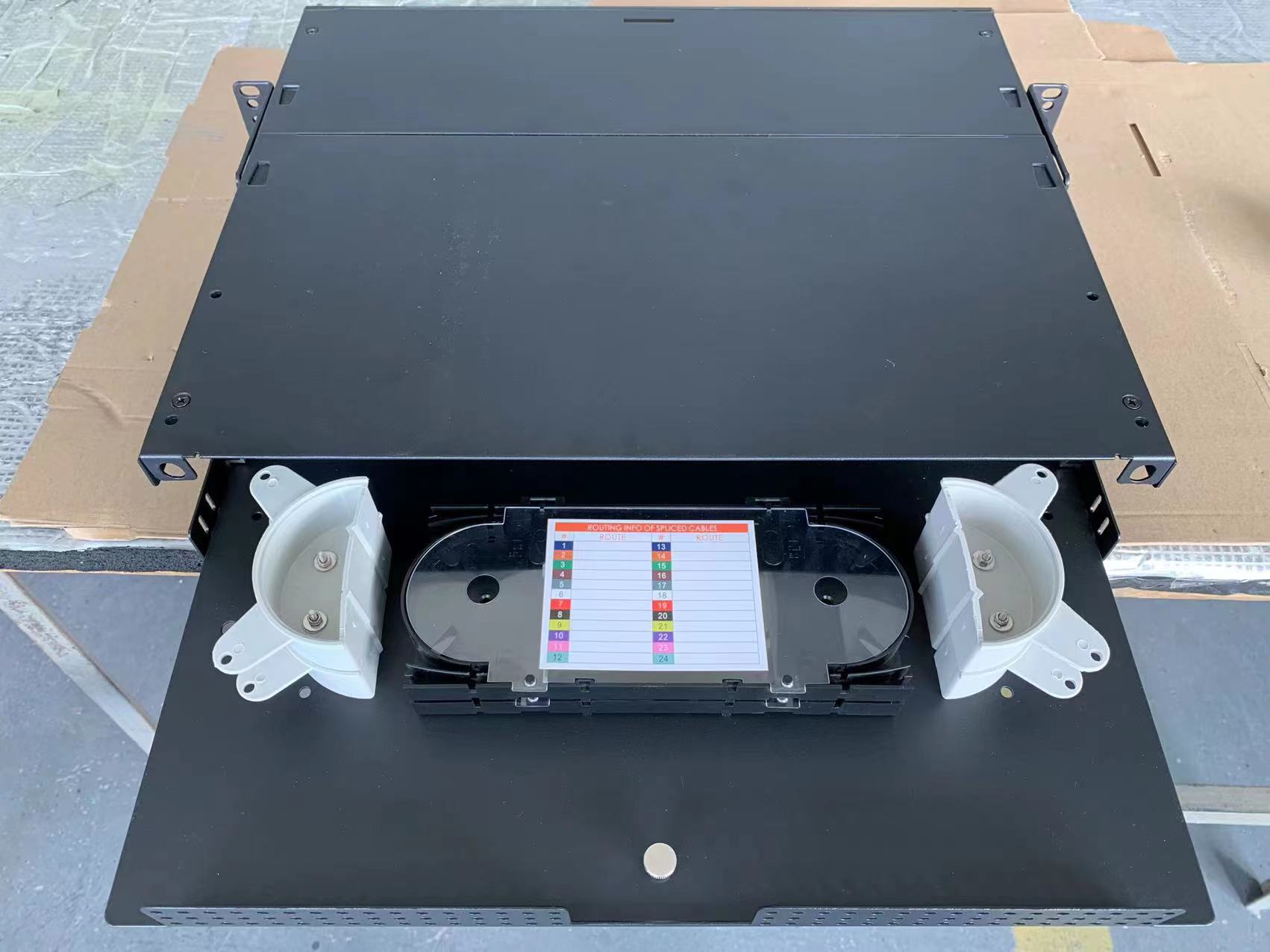

3. Slide-out tray with spring loaded latch

4. Hinged front and rear doors
5. Removable top panel and front faceplate
6. Non-captive side and rear entries for trunks
7. Standard 19" - 23" rack mountable unit

Buying Guide:

1. 3RU, Slide out tray, 9 adapter panel capacity

2. Holds up to (9) ST-M-24 splice trays

3. Max number of Terminations: SC/ST = 108, LC = 216

4. Telecommunication & Premise Installations

Application:

1. Enterprise network & Datacenter
2. Indoor application
3. Accepts Indoor and Outdoor Pre-terminated cables and MTP/MPO Modules and Splicing
