4U 19" Rack Mount Fiber Optic Patch Panel ODF FOBOT 4U 384 Cores MPO LC SM OM3 OM4 Adapter panel Chassis

Name: 4U 19quot Rack Mount Fiber Optic Patch Panel ODF FOBOT 4U 384 Cores MPO LC SM OM3 OM4 Adapter panel Chassis
Brand: Twilight
Price: 1 USD

4U 19" Rack Mount Fiber Optic Patch Panel ODF FOBOT 4U 384 Cores MPO LC SM OM3 OM4 Adapter panel Chassis Manufactures

Brand Name : Twilight

Model Number : TW-4U16MDA01

Place of Origin : China

MOQ : 5

Payment Terms : T/T

Supply Ability : 100 pcs per week

Delivery Time : 10-15 working days

Packaging Details : Carton

Product : 4U 384 Cores Patch panel

Material : Cold-rolled steel sheet

Color : Black

Size : 176x482.6x345.4mm

Capacity : 384 cores

Height : 4U

Splice trays : 8 *48 Cores

Contact Now

1U 19" Rack Mount Fiber Optic Patch Panel ODF FOBOT 4U 384 Cores MPO LC SM OM3 OM4 Adapter panel Chassis

[Description]
MPO 4U Patch Panel is used in data center cabling region, and connected the ports with cable to the back of the panel. it is usually assembled in 19 inch frame rack and cabinet. You can assemble MPO cassette,MPO adapter panel and LC adapter panel.

[Technical Features ]

◆Can install 16pcs MPO cassettes, and manage 384 cores max;
◆Can install 16pcs MPO adapter panels, and manage 384 cores max;
◆Can install 16pcs LC SC FC ST adapter panels, Splice trays and manage 384 cores max;
◆Produced with high-quality cold-rolled steel sheet, the main body's depth is 1.5mm;
◆No fur, no bubble, no screw to fasten, snap-in top cover can be opened without any tools;
◆With high-quality acrylic protect cover in front, look nice and elegant.

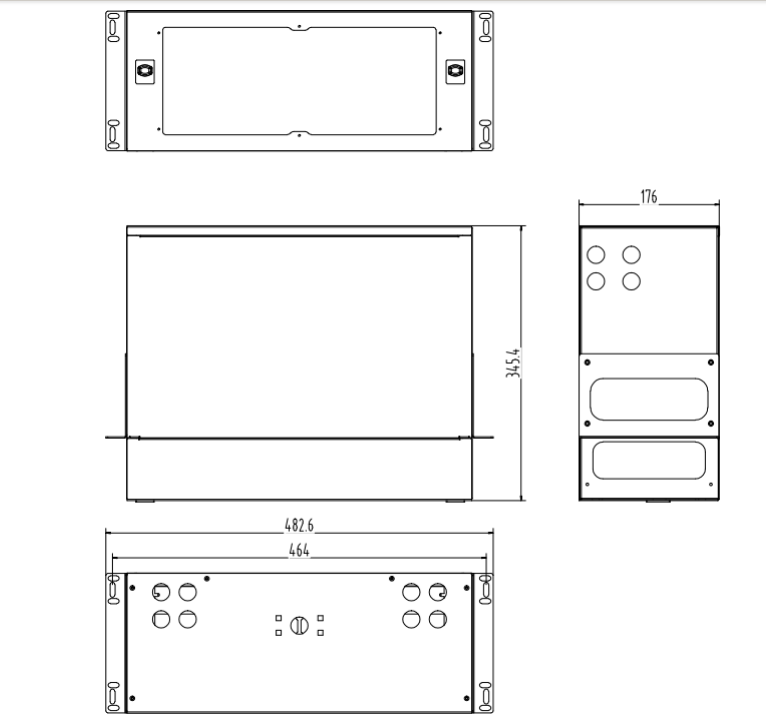

[Drawing ]

4U 19" Rack Mount Fiber Optic Patch Panel ODF FOBOT 4U 384 Cores MPO LC SM OM3 OM4 Adapter panel Chassis

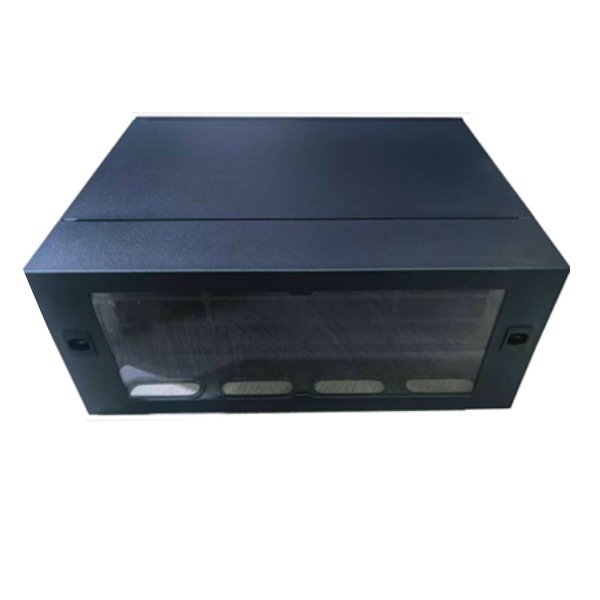

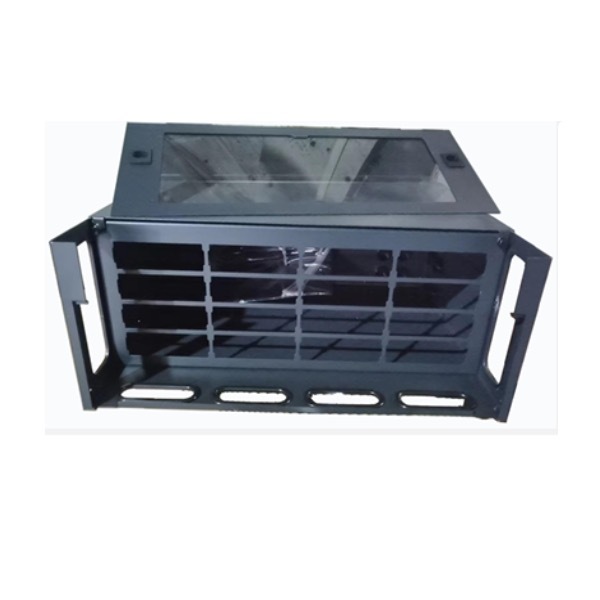

[Real Photo ] 4U 19" Rack Mount Fiber Optic Patch Panel ODF FOBOT 4U 384 Cores MPO LC SM OM3 OM4 Adapter panel Chassis

4U 19" Rack Mount Fiber Optic Patch Panel ODF FOBOT 4U 384 Cores MPO LC SM OM3 OM4 Adapter panel Chassis Images
